Honda HR-V (2015-2021) Service Manual / Brakes / VSA System - Testing & Troubleshooting / DTC Troubleshooting, Testing
DTC TROUBLESHOOTING

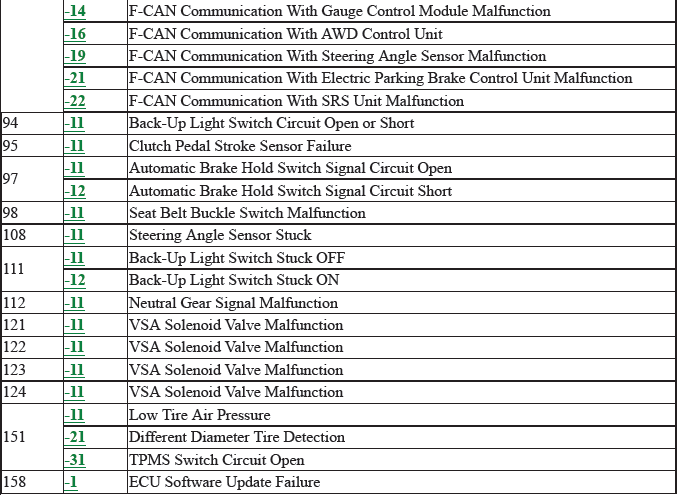

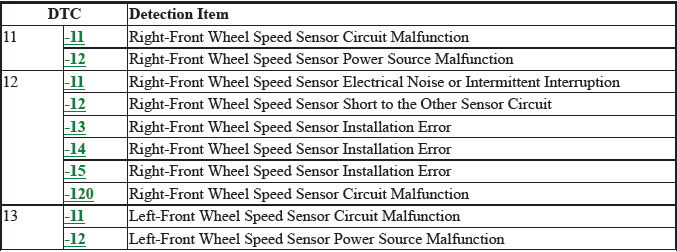

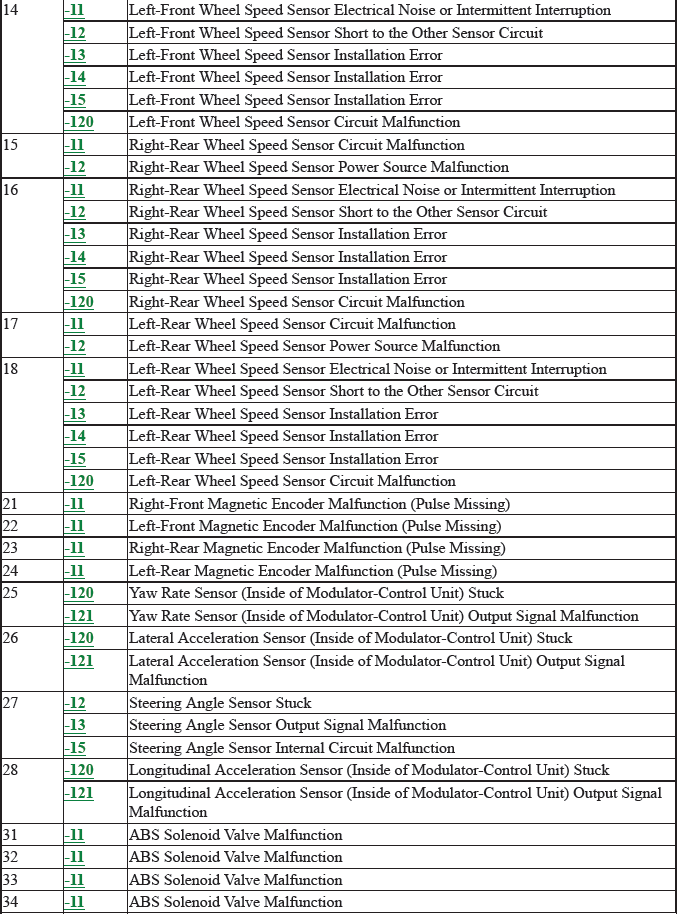

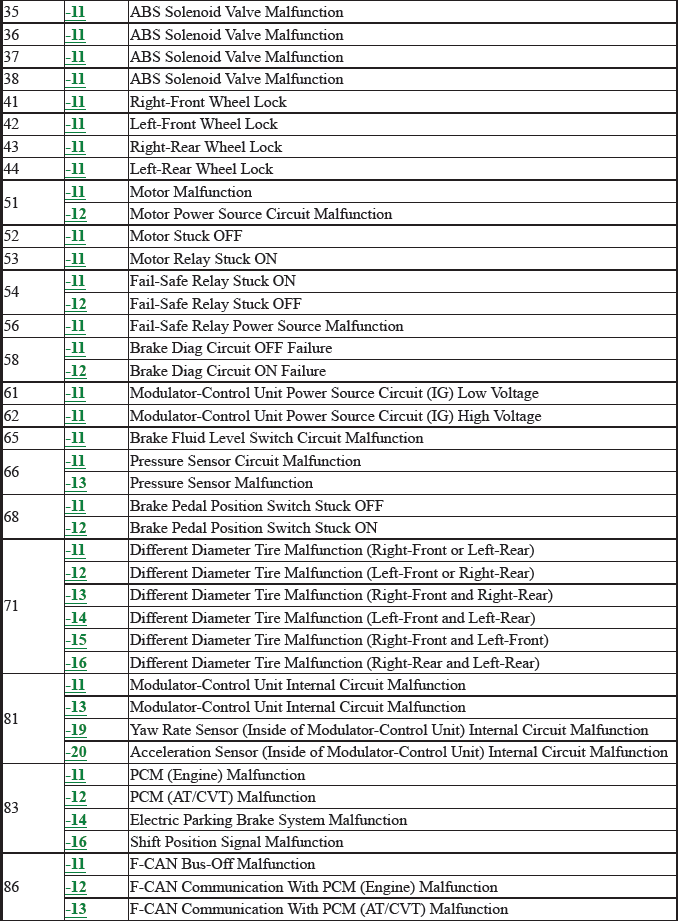

VSA SYSTEM DTC TROUBLESHOOTING INDEX
.png)
.png)
.png)
.png)
TESTING
VSA MODULATOR-CONTROL UNIT UPDATE
Special Tools Required

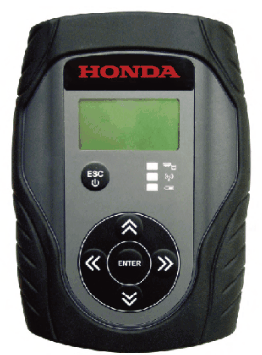

MVCI unit with the latest control module (CM) update software installed
.png)
Procedure
NOTE: High temperature in the engine compartment might cause the VSA modulator-control unit to become too hot to run the update. If the engine has been running before this procedure, open the hood and cool the engine compartment.
1. VSA Modulator-Control Unit - Update
NOTE: Check any official service website for more information about updating the MVCI and control units.
2. VSA Sensor Neutral Position - Memorize
3. TPMS - Calibrate (With TPMS)
READ NEXT:
General Information
HOW TO ENTER VSA MAINTENANCE MODE
Procedure
1. Maintenance Mode - Enter
NOTE:
Entering condition of VSA Maintenance Mode - Refer to: VSA System
Description - Hill
Start Assist Control, or VSA Sys
ABS Indicator, Brake System Indicator (RED), VSA Indicator, And
Brake System Indicator (Amber) Do Not Go OFF (VSA System)
Diagnostic procedure
1. F-Can Circuit Troubleshooting
2. VSA System Symptom Troubleshooting - VSA cannot be turned OFF or VSA
System Symptom
Troubleshooting - ABS indicator, brake system indicator (r
