Honda HR-V: Front Bumper Air Spoiler Removal and Installation
Removal & Installation
1. Front Bumper - Remove

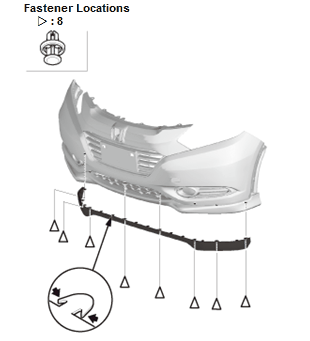

2. Front Bumper Air Spoiler - Remove
.png)
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
FRONT BUMPER LOWER GRILLE REMOVAL AND INSTALLATION
Removal & Installation
1. Front Bumper - Remove
2. Front Bumper Lower Grille - Remove
.png)

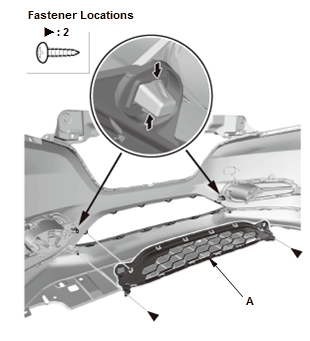

- Remove the screws, then remove the front bumper lower
grille (A).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
FRONT BUMPER REMOVAL AND INSTALLATION
Removal & Installation
1. Front Grille Cover - Remove
2. Front Wheel Arch Protector - Remove
- Remove the front wheel arch protector - Refer to: Front Wheel Arch
Protector Removal and
Installation, or Rear Wheel Arch Protector Removal and Installation as
needed.
3. Front Bumper - Remove
.png)

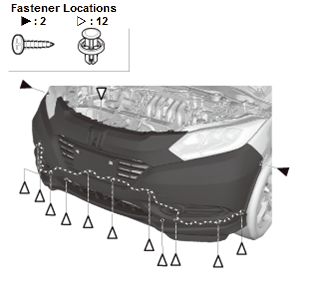

- Remove the screws and clips.
.png)

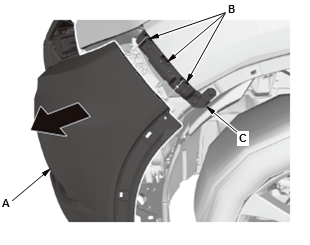

- Pull out the front bumper (A) at the wheel arch area to release it from
the hooks (B) on the side spacer (C).
.png)
- With the help of an assistant, pull out the front bumper (A) to release
it
from the hooks (B) on the upper brackets (C).
.png)

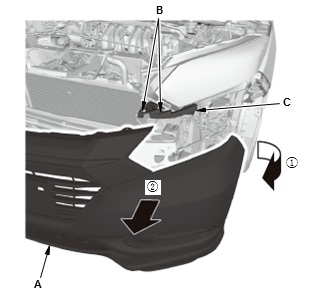

- With the help of an assistant, disconnect the connectors (A).
(for some models)
- Remove the front bumper (B).
4. Front Bumper Side Spacer - Remove
.png)

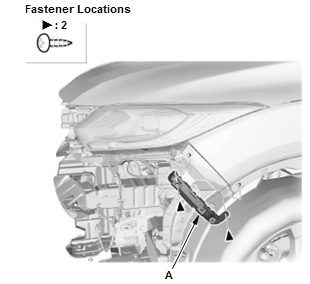

- If necessary, remove the front bumper side spacer
(A).
5. All Removed Parts - Install
- Install the parts in the reverse order of removal.
READ NEXT:
Removal & Installation
1. Front Inner Fender - Remove
Remove the front inner fender - Refer to: Front Inner Fender Removal and
Installation, or Rear
Inner Fender Removal and Installation as n
Removal & Installation
1. Front Bumper - Remove
2. Front Bumper Lower Grille - Remove
3. Front Fog Light Trim - Remove
Remove the screw.
Remove the front fog light trim (A).
4. All Removed
Removal & Installation
1. Front Grille Cover - Remove
2. Front Grille Center Stay - Remove
3. Front Grille Side Stay - Remove
4. All Removed Parts - Install
Install the parts in the reverse or
